You need a trench. Drainage. Electric lines. Water pipes. You look at your machine. Can it dig trenches?
Yes. With a mini skid steer trencher, it does. You do not need a separate excavator. You do not need to rent a walk-behind unit. A quality mini skid steer trencher handles it directly from the comfort of your operator platform.
But not all mini skid steer trencher attachments are the same. Some are for light work, while others chew through rock and clay. Some cost $2,000, and some cost $5,000. You need to know the difference.
This guide covers mini skid steer trencher attachments. Types. Costs. Features. Maintenance. You learn what to look for, avoid buying the wrong unit, and ultimately save money.

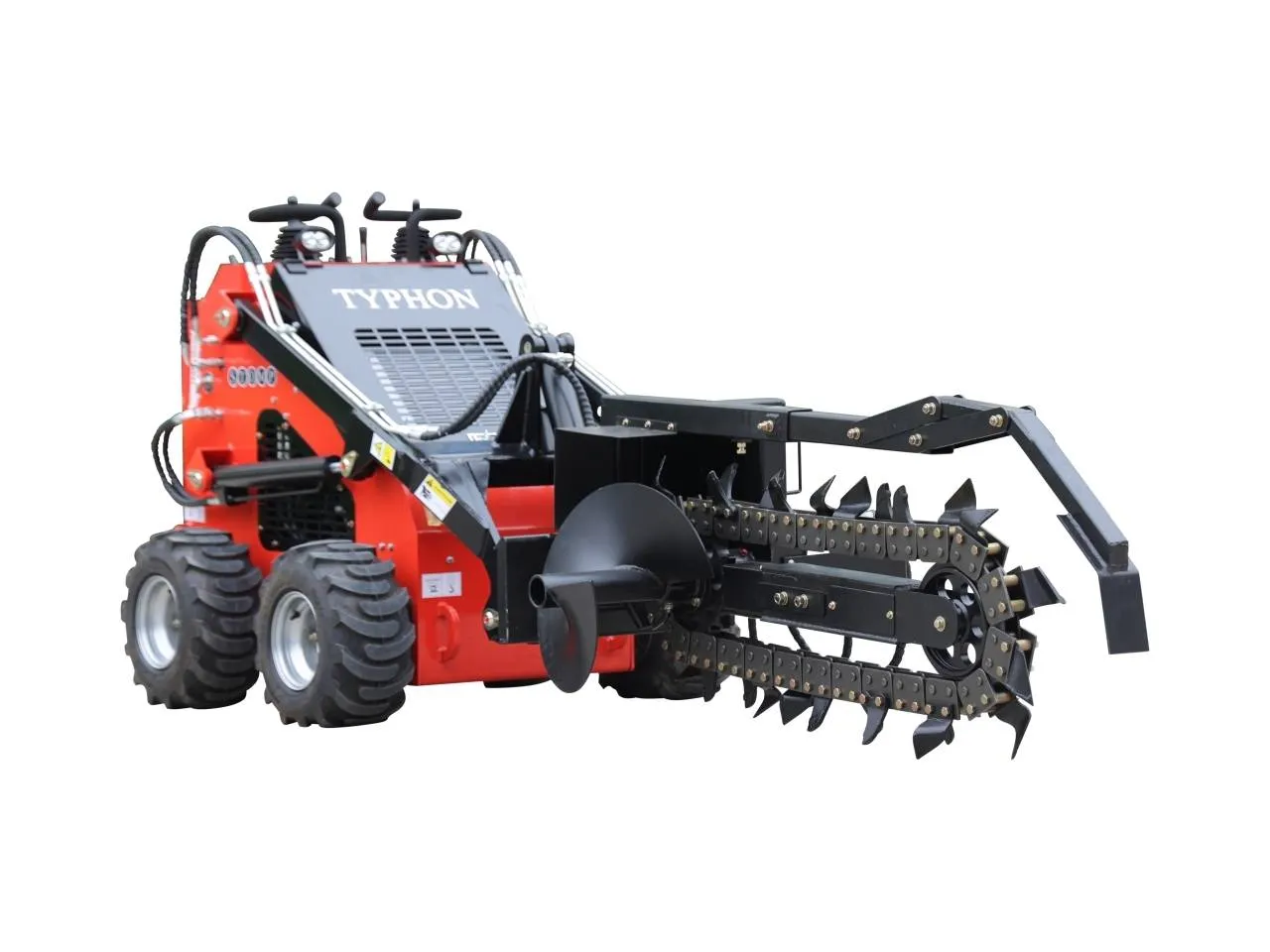

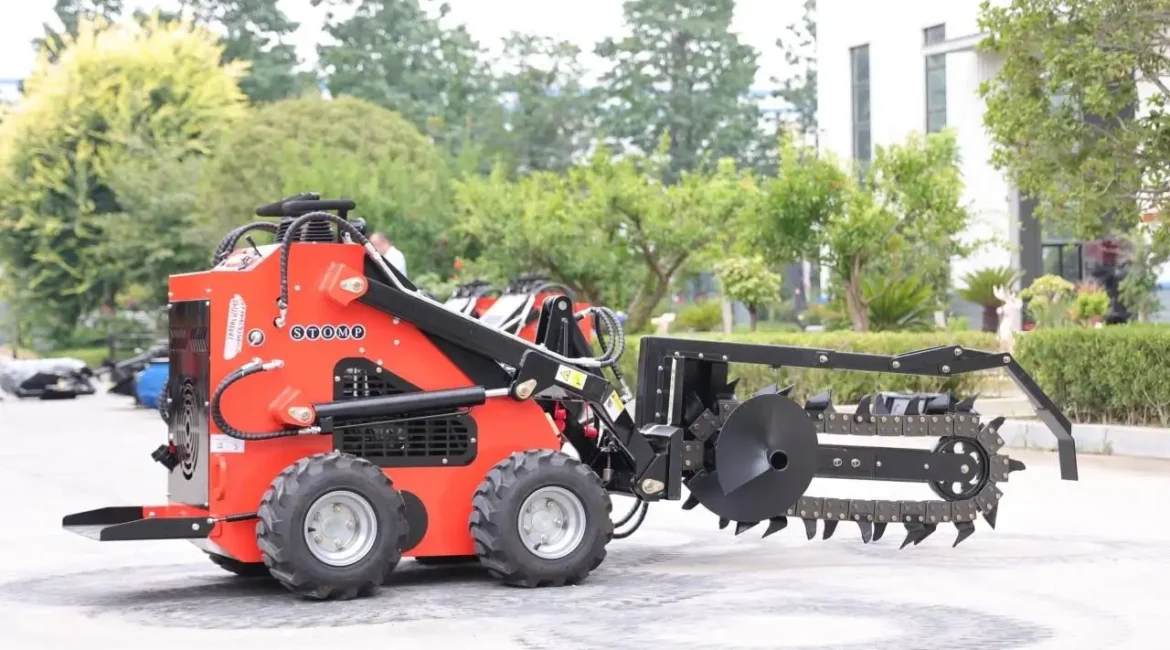

A mini skid steer trencher hooks to your loader. It uses hydraulic power to turn a chain equipped with digging teeth. The teeth cut the ground, and the chain pulls the dirt out efficiently.
The attachment has a boom that holds the chain. You move the boom up and down—lowering it to dig and raising it to stop. The digging depth relies on the boom’s length.
Using a mini skid steer trencher digs straight lines with clean, straight walls. The width of your trench strictly depends on the size of the chain installed.
When shopping for a mini skid steer trencher, three main types exist:
- Standard: The most common type. Works for general digging in soil, sand, and soft clay. Usually digs 24 to 48 inches deep.
- Heavy-duty: Built for tough conditions like rock, hard clay, and frozen ground. Equipped with carbide teeth to resist wear, a reinforced boom, and typically needs higher hydraulic flow.
- Offset: Designed to dig next to structures. The boom offsets to the side so you can dig along foundations and walls while the machine stays clear.
Compare attachments by looking at these key features to ensure you buy exactly what you need:
Digging Depth
Ranges from 24 to 60 inches. Deeper needs a longer boom, which costs more. Buy only what you need.
Trench Width
Ranges from 4 to 12 inches. Choose narrow chains for cables/pipes and wide chains for drainage.
Chain Speed
300 to 600 feet per minute. Faster digs better in soft soil; slower handles hard material.
Hydraulic Flow
Most trenchers need 8 to 12 GPM. Low-flow machines cannot run large trencher attachments.
Prices vary when buying a mini skid steer trencher. Here are the typical costs you can expect to pay:
| Item / Type | Estimated Cost |
|---|---|
| Standard trencher | $2,000 to $3,500 |
| Heavy-duty trencher | $3,500 to $5,500 |
| Offset trencher | $3,000 to $4,500 |
| Replacement chain | $200 to $500 |
| Carbide tooth set | $300 to $600 |
| Standard tooth set | $150 to $300 |
Always budget for teeth and chains because they will wear out. Factor these into your job pricing.
Ask yourself these questions before buying a mini skid steer trencher:
- What soil do you dig in? Sandy soil requires a standard model. Clay needs heavy-duty. Rocky or frozen ground requires heavy-duty with carbide teeth.
- What depth? Under 24 inches = Standard. 24 to 48 inches = Standard or heavy-duty. Over 48 inches = Heavy-duty only.
- What width? Under 6 inches = Standard. 6 to 12 inches = Standard or heavy-duty. Over 12 inches = Heavy-duty only.
- What is your hydraulic flow? Under 8 GPM = Small trencher only. 8 to 12 GPM = Most trenchers work. Over 12 GPM = All trenchers work.
If you are also clearing heavy brush or rocks before trenching, you might want to review our guide on the best mini skid steer grapple for land prep.
You generally face two options: an attachment for your loader or a rental walk-behind trencher.
Mini Skid Steer Trencher
- Cost: $2,000 to $5,500 to own.
- Speed: Significantly faster digging.
- Comfort: You operate from the machine platform/cab.
- Versatility: One machine handles many jobs.
Walk Behind Trencher
- Cost: $1,500 to $4,000 to rent frequently over a year.
- Speed: Slower production.
- Comfort: Exhausting to walk behind all day.
- Versatility: It only does one job.
The attachment easily wins if you already own the machine. Buy it once, use it for years, and avoid rental fees.
Example 1: A Florida contractor installed a French drain 200 feet long, 18 inches deep, and 6 inches wide using a standard mini skid steer trencher. He finished in 2 hours. Hand digging would take 3 days.
Example 2: A Texas contractor ran power to a shed (100 feet long, 24 inches deep, 4 inches wide). A narrow mini skid steer trencher finished the job in 1 hour. A rental would have cost $200 and taken 3 hours total.
Example 3: A California contractor installed a sprinkler system with 500 feet of total trenches. A standard mini skid steer trencher finished in 4 hours. Hand digging would take 2 weeks.
Your mini skid steer trencher needs regular care to survive tough digging conditions.
Every 8 Hours
Check teeth and replace broken ones. Check chain tension and adjust if loose. Check hoses for leaks.
Every 40 Hours
Grease pivot points with 2 to 3 pumps. Check boom bolts and tighten if loose.
Every 100 Hours
Replace worn teeth to dig faster. Inspect the chain for stretched links and replace if worn.
Every Year
Change hydraulic fluid, inspect seals, and check the boom for structural wear.
- Problem 1: Your mini skid steer trencher wanders.
Fix: Check boom alignment with the machine center. Also, check chain tension; loose chains cause wandering. - Problem 2: Digs too slow.
Fix: Replace worn teeth. Verify enough hydraulic flow. Increase chain speed if possible. - Problem 3: The trencher bounces.
Fix: Reduce hydraulic flow. Lower the boom slower and add machine weight if possible. - Problem 4: Teeth break often.
Fix: Use carbide teeth for rocky ground, slow down in hard material, and check chain alignment.
Using a mini skid steer trencher can be dangerous. Follow these critical safety rules:
- Call 811 before you dig: Utility lines are buried. Hit one and someone gets hurt. Hit one and you pay heavily.
- Wear proper gear: Hard hat, safety glasses, steel-toe boots, and gloves.
- Keep people away: Trenching throws rocks. Maintain a 20-foot exclusion zone.
- Do not dig under foundations: Trenches collapse. You lose the attachment and damage the foundation.
- Check the ground: Look for large rocks and remove them by hand before cutting.
Buy a mini skid steer trencher and use it for 5 years. Here is the math:
Purchase: $3,000
Teeth over 5 years: $1,000
Chain over 5 years: $500
Maintenance over 5 years: $500
Total Ownership Cost: $5,000
If you dig 100 trenches over 5 years:
Cost per job to own: $50
Rental cost per job: $200
Savings per job: $150
Total savings: $15,000
The attachment pays for itself in the first year.
A mini skid steer trencher attachment digs fast for drainage, utilities, and irrigation. You finish jobs quicker and make more money. Choose the right type: standard for general dirt, heavy-duty for rock, or offset for tight spots.
Always check depth and width, match it to your work, and verify hydraulic flow. Budget for teeth and chains because they wear out. Buy the mini skid steer trencher, save money, and dig faster.
